Choosing the right resistance for your speaker keeps your audio safe and helps you hear clear sound. Most speakers use 4, 6, or 8 ohms, which indicate the correct resistance range that the speaker provides to the amplifier’s signal. If you connect a speaker within the correct resistance range, you prevent damage and achieve the best sound quality. Research shows that matching speaker impedance and amplifier specs helps control speaker movement and reduces noise. You can follow simple steps to select the right one.
Key Takeaways
Pick speakers with the right impedance for your amplifier. This stops damage and keeps the sound clear.
Look in your amplifier’s manual to find the right impedance range. Doing this easy step keeps your gear safe.
Use the same impedance for all speakers in your setup. This helps the sound stay even and keeps your system safe.
Watch for problems like distortion or overheating. Fix these problems fast so nothing gets damaged.
You can ask experts like ZEH Audio for help. They can show you how to match speaker and amplifier impedance for the best sound.
Why Speaker Impedance Matters
Impact on Amplifier and System
It is important to think about speaker impedance when you set up your audio system. The ohm number, like 4-ohm or 8-ohm, changes how your amplifier works. If you use the right impedance, your amplifier and speaker work well together. This gives you clear music and helps your equipment last longer.
When you match impedance, you get the most power and less distortion.
Using 8-ohm speakers with an 8-ohm amplifier gives strong, clear sound.
If you do not match impedance, the sound may be weak or your amplifier could get damaged.
Lower impedance, like 4-ohm speakers, lets more current flow. This can make music louder but puts more stress on your amplifier.
Higher impedance, like 8-ohm speakers, lowers the current and can make the sound less loud.
You should always check the total impedance when you connect more than one speaker. If the total impedance is too low, your amplifier can get too hot or turn off. ZEH Audio makes sure all parts fit together well, so your system works better and lasts longer.
Sound Quality and Safety
Speaker impedance is also important for sound quality and safety. When you match the impedance of your speaker and amplifier, your music sounds more natural and balanced.
Effect | Description |
|---|---|
Frequency Response | Wrong impedance can make some sounds too loud or too quiet. |
Tonal Balance | Bad matching can make the sound uneven. |
Dynamic Range | Poor matching makes soft and loud sounds closer together. |
Power Transfer | Good matching gives you the most power from your amplifier. |
Thermal Management | Right impedance keeps things cool and helps your gear last longer. |
If you use the wrong impedance, your amplifier can get too hot. Using many 4-ohm speakers together can be dangerous and break your equipment. Always check the total impedance and make sure it is safe for your amplifier. This keeps your system safe and your music sounding good.
Tip: Always look at your amplifier’s manual to find the best speaker impedance range. This easy step keeps your equipment safe and gives you the best sound.
Understanding Nominal Impedance
What Is Nominal Impedance?
You might see nominal impedance on your speaker’s label or in the manual. This number shows the average resistance your speaker gives to the amplifier’s signal. The ohm rating, like 4 ohm or 8 ohm, helps you pick the right speaker for your amplifier. This keeps your sound safe and clear.
The most common impedance value is called nominal impedance. Nominal means the “named” impedance of the loudspeaker. The IEC-268-5 rule says you find nominal impedance by taking the lowest point on the curve (in the loudspeaker’s pass band) and multiplying it by 1.25. In other words, the lowest impedance should not be less than 80 percent of the nominal value.
Impedance changes with frequency and power. It does not stay the same all the time. Think of nominal impedance as an average number. The lowest spot on the impedance curve is important for matching your speaker to your amplifier. Manufacturers use special tools to check the impedance curve. They find the lowest value and then set the nominal impedance so it is at least 80% of that low point. This follows international rules and keeps your system safe.
Common Speaker Impedance Ratings
You will see a few common ohm ratings when you shop for speakers. Each rating works best for different uses and systems. The table below shows the most popular choices:
Nominal Impedance | Common Usage |
|---|---|
4 ohm | Used in car and pro audio for higher output |
8 ohm | |
16 ohm | Used for high-frequency drivers |
Most home speakers use 8 ohm ratings. Car and pro systems often use 4 ohm speakers for more power. Some special drivers use 16 ohm ratings. You should always check your amplifier’s manual to see which speaker impedance is best.
If you work with a company like ZEH Audio, you get help picking the right speaker impedance for your system. Their team uses advanced tools to measure and set the correct ohm value. This makes sure your speakers and amplifiers match well, giving you good sound and a longer-lasting system.
How to Find the Correct Resistance Range
Checking Amplifier Specifications
You need to check your amplifier before you connect any speaker. This step helps you avoid damage and get the best sound. Most amplifiers support a range of ohm values. You will see numbers like 4 ohm, 6 ohm, or 8 ohm in the manual or on the back panel. Modern amplifiers often work with hi-fi speakers that have impedance from 3.5 ohms to 25 ohms. The most common values are 4-ohm speakers, 6-ohm speakers, and 8-ohm speakers.
Follow these steps to check if your amplifier matches your speaker:
Look at your speaker’s specifications. Check the power handling, impedance, and sensitivity.
Make sure your speaker’s impedance matches or is higher than your amplifier’s minimum impedance. For example, if your amplifier says “minimum 6 ohms,” you can use 6-ohm or 8-ohm speakers, but not 4-ohm speakers.
Check that your amplifier’s power output fits your speaker’s power rating. This keeps your speaker safe.
Count how many channels you need. Each channel powers one speaker.
Check the connections. Make sure your amplifier and speaker use the same type of wire or plug.
Think about the future. Choose an amplifier that lets you add more speakers if you want to upgrade.
Tip: If you use more than one speaker, always check the total impedance. Connecting two 8-ohm speakers in parallel gives you 4 ohms. Your amplifier must support this lower value.
You can find the amplifier’s supported impedance in the manual or on the back panel. Most home theater amplifiers focus on RMS power over 8 ohms for the best performance. If you use 4-ohm speakers, your amplifier must say it supports 4 ohms. Using a lower impedance than your amplifier supports can cause overheating or shutdown.
Where to Locate Speaker Impedance Info
You can find the impedance rating for your speaker in several places. This number tells you how much resistance the speaker gives to the amplifier’s signal. The most common values are 4 ohm, 6 ohm, and 8 ohm. Here is where you should look:

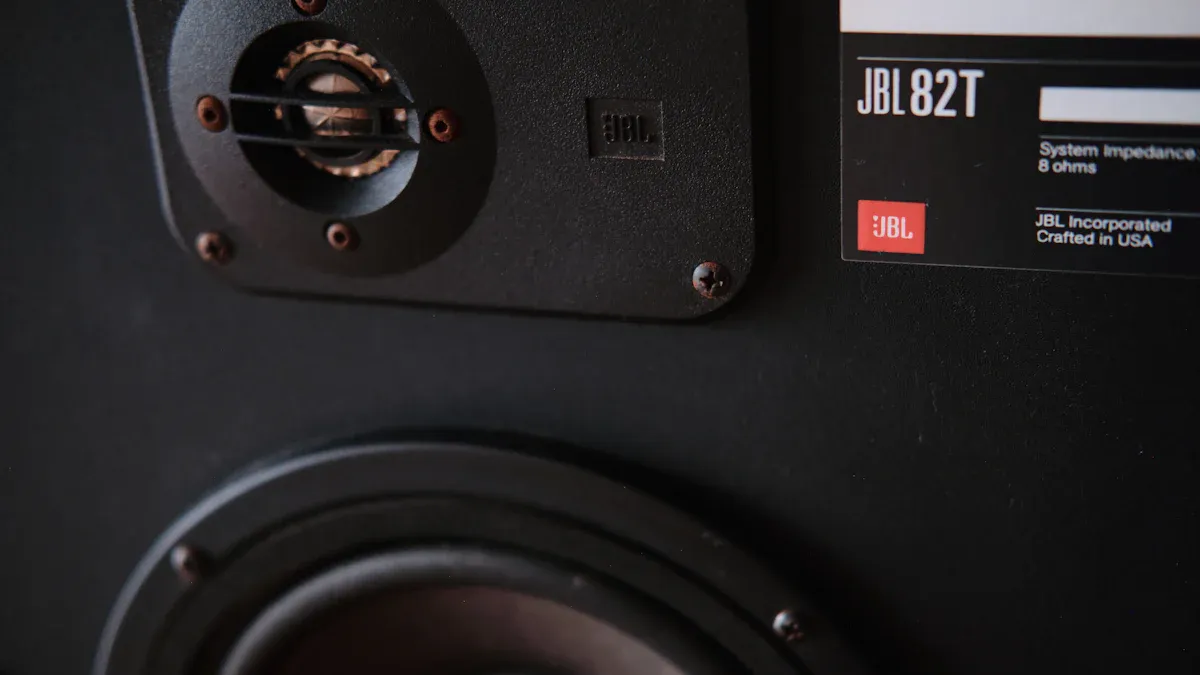

Check the back of the speaker. Most speakers have a label that shows the nominal impedance, such as “8Ω” or “4Ω.”
Read the product manual. The specifications section lists the impedance and other details.
Use an impedance analyzer tool for a detailed measurement. This tool gives you the exact value.
If the label is missing or hard to read, you can use a multimeter to measure the speaker’s impedance. Follow these steps:
Set your multimeter to the lowest resistance (ohms) range.
Disconnect one or both wires from the speaker. This stops false readings.
Touch the probes to the speaker terminals on a clean metal spot.
Read the value on the meter. The number will be close to the speaker’s true impedance.
If your speaker is inside a box, disconnect at least one wire before you measure.
Note: The reading from the multimeter may be a little lower than the speaker’s rated impedance. For example, a reading of 6 ohms means your speaker is likely an 8-ohm speaker.
Most hi-fi speakers today have a nominal impedance of 6 ohms or 8 ohms. You will also find 4-ohm speakers in car audio and pro audio systems. Always match your speaker impedance to your amplifier’s supported range.
If you work with a company like ZEH Audio, you get help with matching and measuring. Their team checks every speaker and amplifier for the right impedance. This makes your system safe and reliable. ZEH Audio’s integrated process solves problems that happen when you buy parts from different suppliers. You get better sound and fewer worries about compatibility.
Callout: Always check both your amplifier and speaker before you connect them. This simple step protects your equipment and gives you the best sound.
Matching Impedance and Avoiding Mistakes
Risks of Mismatched Impedance
You must match your speaker’s ohm rating to your amplifier. If you use a speaker with lower speaker impedance than your amplifier allows, you can have big problems. For example, using 4-ohm speakers with an amplifier made for 8-ohm speakers can make the amplifier work too hard. This might cause it to get too hot, sound bad, or even break forever.
Here is a table that shows what can happen if you do not match impedance:
Scenario | What Happens | Result |
|---|---|---|
4-ohm speakers on 8-ohm amplifier | Amplifier works too hard, gets hot, distorts sound | Possible damage or shutdown |
Lower speaker impedance than amplifier | Excess current, amplifier clips, unclear sound | Permanent damage possible |
Higher speaker impedance than amplifier | Less power output, uneven sound | Lower volume, tonal imbalance |
If you use higher speaker impedance, like 8-ohm speakers with a 4-ohm amplifier, your system will not break. But you will get less power and the sound may be quieter or not as clear. The way the music sounds can change, with some parts too loud or too soft. You might also notice the sound does not feel balanced.
Watch for warning signs of impedance mismatch. These can be humming, unclear sound, or your amplifier turning off. If your amplifier goes into protection mode, unplug all speakers and check their ohm ratings with a multimeter. Make sure your wires are correct and the total system impedance matches your amplifier’s needs.
Never use your amplifier below its lowest ohm rating. This can break your equipment, cause fire, or make your warranty useless.
Tips for Matching Impedance
You can avoid mistakes by following a simple checklist. This helps you get the best sound and keeps your equipment safe.
Impedance Matching Checklist:
Check your amplifier’s manual for the lowest and highest ohm values.
Look at your speaker’s label or manual for its nominal impedance.
Use the same impedance for all speakers in a parallel setup.
Make sure the total impedance does not go below your amplifier’s minimum rating.
Use thicker wire for 4-ohm speakers or long cable runs.
Match your amplifier’s power output to your speaker’s recommended power range.
Plan for future upgrades by choosing components with compatible impedance.
Here is a table to help you remember the key factors:
Key Impedance Factor | Impact on System | Ideal Range |
|---|---|---|
Speaker Impedance | Amplifier Load | 4Ω–8Ω |
Frequency Variance | Stability | ±20% Fluctuation |
Common Mistakes and Solutions:
Mistake | Scenario | Result | Solution |
|---|---|---|---|
Overloading the amplifier | Two 8-ohm speakers in parallel with 8-ohm amp | Overheating, shutdown, damage | Wire in series or use a 4-ohm capable amp |
Mixing different impedances | One 4-ohm + one 8-ohm speaker in parallel | Tonal imbalance, risk of damage | Use same impedance speakers |
Ignoring wire gauge | Thin wire with 4-ohm speakers | Performance issues, possible damage | Use thicker wire for lower impedance |
Using the same impedance for all speakers helps keep the sound even and safe. Always check your amplifier and speaker specs before you connect them. If you hear humming, distortion, or your amplifier shuts down, check your wiring and impedance right away.
In real audio systems, matching impedance gives you the best signal transfer. For example, in home theaters, using 8-ohm speakers with an 8-ohm amplifier gives you clear sound and good performance. In car audio, 4-ohm speakers are common because they can handle more power, but you must use an amplifier that supports them.
If you want to avoid problems, you can work with a company like ZEH Audio. ZEH Audio has over 20 years of experience making audio products. Their team does everything from PCBA development and speaker system building to mold design and wire harness work. They offer OEM and ODM customization for B2B clients. ZEH Audio’s model helps you fix matching and compatibility problems, make your products more consistent, and keep your supply chain strong. You get expert help for matching impedance, so your audio products work well together and last longer.
Tip: Always use the recommended power range for your speakers and amplifiers. This keeps your system safe and sounding its best.
You can get good, steady sound if you follow easy steps. First, check your speaker’s impedance. Next, make sure it matches your amplifier’s rating. Then, look at the sensitivity and power handling. Use the table below for a fast guide:
Step | Action |
|---|---|
Check Speaker Impedance | Find 4, 6, or 8 ohms on your speaker |
Match Amplifier Load | Make sure your amplifier works with that |
Review Sensitivity | Pick speakers with 90 dB or more |
Verify Power Handling | Check if your amplifier fits the speaker |
Matching impedance stops your system from getting too hot or sounding bad.
Checking these things keeps your gear safe and helps it last longer.
ZEH Audio’s all-in-one help makes sure your parts work together and your system is strong.
Use these tips to keep your music clear and your audio system safe for a long time.
FAQ
What happens if you use the wrong speaker impedance?
You could break your amplifier or get bad sound. Low impedance can make your amplifier too hot. High impedance makes the music quieter. Always read your amplifier’s manual before you hook up speakers.
How do you find your speaker’s impedance rating?
Check for a sticker on the back of your speaker or look in the manual. You can also use a multimeter to check resistance. Most speakers are marked as 4Ω, 6Ω, or 8Ω.
Can you mix speakers with different impedance values?
Mixing different impedance values can make the sound uneven and hurt your amplifier. Use speakers with the same impedance for the best sound. ZEH Audio’s systems help you avoid these problems.
Why does ZEH Audio recommend matching impedance?
Matching impedance keeps your system safe and makes the sound better. ZEH Audio’s one-stop process makes sure all parts work together and stops problems for B2B clients.
What should you do if your amplifier shuts down?
Unplug all the speakers. Check each speaker’s impedance rating. Make sure the total matches what your amplifier can handle. ZEH Audio’s team can help you fix and stop these problems.
