To make high-frequency speakers sound better, you need to pick materials and designs that are strong and do not shake much. This helps the speaker move exactly as it should. It also stops extra noise or shaking. Good choices let the speaker play clear sounds. Testing shows that every material changes how the speaker works and sounds. The table below shows some materials used in speakers:
Material Type | Advantages | Disadvantages |
|---|---|---|
Coated Paper | Works well for low sounds | Might not last long |
Polypropylene | Light and strong | Can bend if pushed too hard |
Aluminum | Plays low sounds well | Heavier than other choices |
Carbon Fiber | Very stiff and light | Costs more money |
Rubber | Lasts long and bends well | Can break down after a while |
Foam | Light and bends easily | Not as strong as rubber |
Wood (enclosure) | Makes good sound | Heavy and can cost more |
Plastic (enclosure) | Light and keeps water out | Might not sound the best |
You can make speakers work better and have less distortion if you know how each material and design changes the sound.
Key Takeaways
Pick materials that are stiff and light for speaker cones. This lowers distortion and makes sound clearer.
Choose heat-resistant materials for voice coils. This stops distortion from too much heat and keeps sound good.
Use neodymium magnets for high-frequency speakers. They are strong and light, so they help control distortion and make audio better.
Make sure the speaker box is designed well and uses stiff materials. This cuts down on bad vibrations and makes sound quality better.
Test and tune your speakers often. Small changes can make sound clearer and lower distortion.
Voice Coil Materials
Heat Resistance
High-frequency speakers need to play clear sound for a long time. The voice coil gets hot when you turn up the music. If the coil cannot take the heat, you will hear distortion. This happens because the wire gets more resistant as it heats up. The speaker then changes its sound, and you lose clarity. You can stop this by picking materials that handle heat well. Good voice coils use materials that stay strong in high heat and cool off fast. Some designs have vented formers to move heat away from the coil. This keeps your speaker working well and helps stop distortion.
Heat-resistant materials keep the coil steady.
Good heat loss keeps sound quality safe.
Steady resistance means less distortion in the speaker.
Lightweight Options
You should pick light materials for your speaker design. Lighter coils move fast and stop quickly. This helps your speaker play high notes with more detail and less distortion. Aluminum and copper-clad aluminum (CCA) are popular picks. They weigh less than pure copper, so they make the speaker more sensitive and quick. The table below shows how different materials change performance:
Material Type | Impact on Moving Mass | Effect on Transient Response |
|---|---|---|
Copper-Clad Aluminum (CCA) | Up to 30% less weight | Better sensitivity and faster response for high notes |
Specialized Aluminum Alloys | N/A | Better for portable devices |
Novel Titanium Composites | N/A | N/A |
Distortion Impact
The right voice coil materials and design help you control distortion in your speaker. Copper voice coils carry electricity well but are heavy, which can hurt high notes. Aluminum coils are lighter and move faster, but do not carry electricity as well. CCA gives you both good speed and efficiency. If you want less distortion, pick materials that fit your speaker’s needs. Always check for heat resistance and low weight. This will help you get clearer sound and stop distortion. You will get better sound and your speaker will last longer.
Tip: Pick light, heat-resistant materials for your voice coil to lower distortion and get better sound.
Magnet Types for High-Frequency Speakers
Picking the right magnet for your high-frequency speakers matters a lot. The magnet helps the loudspeaker move and keeps its shape during fast changes. You want a magnet that gives clear sound and less distortion.
Strength-to-Weight Ratio
A strong magnet controls the voice coil better. This control lets the speaker move fast and stop quickly. Neodymium magnets are strong but light. They help you make smaller speakers that still sound powerful. This design lowers distortion because the speaker reacts faster. Ferrite magnets are heavier and not as strong. They work well in big speakers but may not be best for high-frequency ones. Alnico magnets are heavier than neodymium but can control the speaker well in some designs.
Stability
A stable magnet keeps distortion low. When the magnet stays steady, the speaker works well even if it gets hot or uses more power. Alnico magnets stay strong when hot, so the speaker keeps good sound. Ferrite magnets can break if dropped, which can cause distortion or make the speaker stop working. Neodymium magnets do not lose their strength easily. This helps keep the speaker clear and stops distortion.
Material Choices
You can pick from different magnet materials. Each one changes how the speaker works and sounds. The table below shows the main types:
Magnet Type | Advantages | Disadvantages |
|---|---|---|
Neodymium | Strong magnetic field, small size | Costs more because the materials are rare |
Ferrite | Cheap, good for big speakers | Not as strong as neodymium, can break |
Alnico | Stays strong when hot, resists rust | Not as strong, costs more than ferrite |
If you want clear sound and less distortion, pick a magnet that fits your speaker. Neodymium is good for high-frequency speakers because it is light and strong. Ferrite is good if you want to save money but may not control distortion as well. Alnico is stable but costs more. Always pick a magnet that matches your speaker to keep sound clear and stop distortion.
Tip: Choose neodymium magnets for high-frequency speakers if you want great sound and less distortion. This helps stop distortion and gives you better audio.

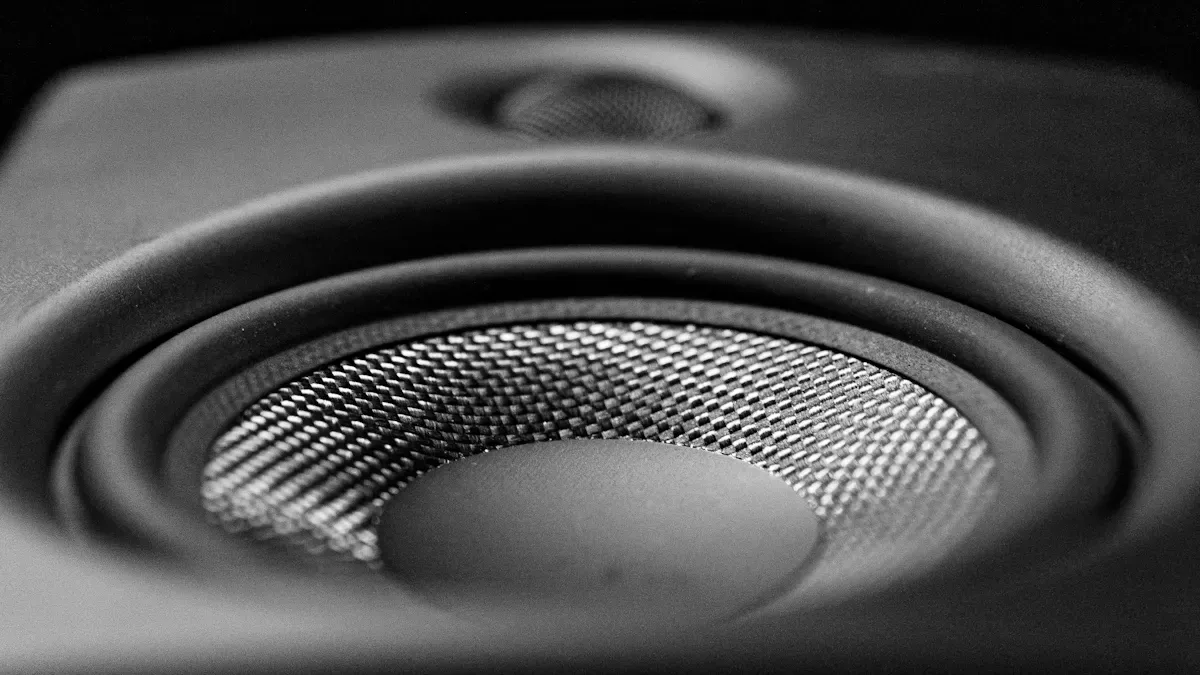

Cone Materials and Damping
Rigidity and Low Mass
You should pick cone materials that are stiff but not heavy. This helps the speaker move fast and stay on track. A stiff cone does not bend or shake in the wrong way. Light cones move quickly and show small details in music. The table below shows some common cone materials:
Material | Rigidity | Mass | High-Frequency Performance | Sound Quality |
|---|---|---|---|---|
Paper | Moderate | Low | Good | Warm and natural |
Polypropylene | High | Low | Excellent | Less warmth |
Plastic | Moderate | Moderate | Fair | Neutral |
Paper cones sound warm and react fast. Polypropylene cones are stiff and do not get hurt by water. They are great for high sounds. Plastic cones sound plain but may not be as clear as paper or polypropylene. If you pick a stiff and light cone, your speaker works better and has less distortion.
Tip: Always check if the cone is stiff and light. This helps you get clear sound and stops distortion.
Damping Qualities
Damping means how well a material can stop shaking. You want the cone to stop moving when the music ends. If it keeps shaking, you get extra noise called resonance. Paper cones are good at damping. They soak up shakes and make warm sound. Polypropylene cones do not let water in and are stiff, but sometimes sound less lively. Metals like aluminum are very stiff but need special work to stop extra shaking.
Material | Pros | Cons |
|---|---|---|
Paper | Warm sound, great at damping, light, not expensive. | Can get hurt by water, does not last as long. |
Polypropylene | Does not soak up water, made the same every time, stiff and light. | Can sound less lively than paper. |
Kevlar | Very stiff and light, good at damping, colorful sound. | Costs more, can have problems if not made right. |
Aluminum/Metals | Very stiff, reacts fast, bright and clear sound. | Needs extra work to stop loud shakes. |
Carbon Fiber | Very stiff and light, low distortion, clear sound. | Costs a lot, can sound too sharp if not made well. |
If you use a cone that is good at damping, you stop resonance. Resonance happens when sound bounces back and makes some notes louder. This can cause distortion after the music stops. If the cone is too soft, sound waves bounce back and make the speaker shake too long. You stop distortion by picking materials that soak up shakes.
Note: ZEH Audio picks special materials and uses smart designs to make cones that stop shaking fast. Their custom cones help you get less distortion and clearer sound in high-frequency speakers.
Distortion Control
You can lower distortion in high-frequency speakers by picking the right materials and design. Stiff and light cones keep their shape and move fast. This stops bad shakes and keeps the sound true. Materials that soak up shakes help you get less distortion and better sound.
A stiff cone does not bend or shake.
Light cones move fast and show music details.
Good damping soaks up shakes for clear sound.
If damping is not good, you get resonance problems. The cone keeps shaking after the music stops, and you hear extra sounds. You can stop this by picking materials that soak up shakes and using a good design.
ZEH Audio knows how to pick the best materials and make custom designs. They focus on stopping distortion by using smart materials and careful engineering. You get better sound and less distortion in your high-frequency speakers.
Tip: Always pick cone materials that are stiff, light, and good at damping. This helps you stop distortion and get clear sound.
Suspension and Enclosure Design
Compliance and Control
The suspension helps the speaker move the right way. You need to match how soft the suspension is to the speaker’s sensitivity. If the suspension is too soft, the speaker can shake too much and sound bad. If it is too stiff, the speaker cannot move well and this hurts the sound. You can look at the Qms level to see how the suspension changes distortion.
Qms Level | Effect on Distortion |
|---|---|
High Qms | Can make the speaker ring if not controlled |
Low Qms | Usually lowers mechanical distortion |
Rubber and plastic in the suspension soak up shakes. These materials help the speaker work better and lower distortion. You get clearer middle sounds and better deep bass. A double-layer spring at the top can also help the speaker move smoothly and lower distortion.
Tip: Pick suspension materials that are not too soft or too stiff. This helps you lower distortion and make the sound clearer.
Resonance Filtering
Resonance filtering in the box design stops extra shaking. You can use braces inside the box to make it stronger. This makes the box stiffer and cuts down on shaking. Curved or slanted walls help stop sound waves from bouncing around. This gives you cleaner sound. The front panel and special mounts keep the speaker parts from shaking the box. Soft sheets and stuffing inside soak up leftover energy and help stop distortion.
Method | Description |
|---|---|
Internal Bracing | Makes the box stronger and cuts down on shaking |
Curved/Non-Parallel Walls | Makes the box stronger and stops sound waves from bouncing |
Baffle Design/Decoupling | Uses thick panels and keeps speaker parts from shaking the box |
Damping/Isolation | Adds soft sheets and stuffing to soak up energy and stop distortion |
Note: MDF boxes with extra supports stop shaking and get rid of unwanted noise. Special suspension designs stop shaking in the middle sounds and lower mixed-up distortion.
Structural Integrity
You should pick box materials that are stiff and soak up shakes. The box material is the first thing that stops shaking. Designers want a good mix of stiffness, soaking up shakes, and weight. Small mistakes in aluminum boxes can let air out and cause shaking, which hurts the sound. Careful design and building are needed to lower distortion and get better sound.
Stiff boxes help stop shaking.
Good damping soaks up shakes and makes sound better.
Careful work and checking help stop distortion.
You can use MDF, wood, or strong plastic for the box. These materials give you clear sound and help your speaker work well for high notes.
Tip: Always check if your speaker box is strong and well built. This helps you stop distortion and keep the sound clear.
Ways to Reduce Distortion
DSP Crossovers
You can use DSP crossovers to lower distortion in high-frequency speakers. DSP means Digital Signal Processing. These crossovers split the sound into parts. Each part goes to the right speaker. This helps block sounds that cause distortion.
Linear phase FIR filters keep timing correct. They don’t twist the sound, so it’s clearer. They need more computer power but give smooth audio.
Minimum phase filters work faster and use less power. But they can change the timing of the sound, which might hurt quality.
High-order slopes in crossovers block resonant frequencies. This protects your tweeters and reduces distortion. Watch out for phase rotation and group delay, which can change how you hear the sound.
Choose the right filter for your speaker design. This keeps the sound clear and stops extra noise. ZEH Audio uses advanced DSP crossovers. They test each speaker and adjust filters for the best sound.
Tip: Use DSP crossovers with high-order slopes to block resonant frequencies and protect your high-frequency speakers from distortion.
Types of Distortion
You should know about two main types of distortion in loudspeakers. These are linear and non-linear distortion. Each one changes the sound differently.
Strategy | Description | Effect on Distortion Mechanisms |
|---|---|---|
Filtering Techniques | Use first-order filters to control linear distortion. | Reduces higher frequencies near break-up points. |
Composite Materials | Mix materials to balance stiffness and damping. | Cut down distortion and resonance peaks. |
Inductors | Air core inductors raise impedance at resonance, limiting current. | Stop too much vibration at resonant frequencies. |
Compensation Networks | Complex networks made for specific break-up modes. | Fix specific distortion problems effectively. |
Linear distortion changes the shape of the sound. It can make some sounds too loud or too soft. Non-linear distortion adds new sounds that weren’t in the original. These extra sounds can make the speaker harsh or unclear.
You can use filters, special materials, and smart networks to control both types of distortion. ZEH Audio uses composite materials and custom networks. This helps improve sound quality and reduce distortion.
Tips for Better Design
Follow these steps to lower distortion and make your speaker better:
Match the power and impedance of your amplifier and speaker. This stops overload and keeps distortion low.
Pick speakers that fit your needs. Choose the right size and type for your space or event.
Use good materials for all parts. Quality parts lower mechanical distortion and last longer.
Make sure your speaker can get rid of heat. Good cooling stops thermal distortion and keeps performance steady.
Think about where you will use the speaker. Pick designs that work well in your environment.
Place your speakers carefully. This reduces reflections and standing waves that cause distortion.
Check and clean your speakers often. Regular care finds problems early and keeps distortion away.
You can also test and tune your high-frequency speakers for the best sound. Use measurement microphones and audio software to check for distortion. Adjust the DSP crossovers and filters until the sound is clear. ZEH Audio uses advanced tools to fine-tune their speakers. This gives you the best clarity and the least distortion.
Note: Always test your speakers after setting them up. Small changes in placement or tuning can make a big difference.
By using these strategies, you can control distortion and get the best from your high-frequency speakers. Good design, smart material choices, and careful tuning will help you enjoy clear sound every time.
You get the best sound from high-frequency speakers by picking good materials and building them well. Plastic cones last a long time and help stop shaking. Foam in the diaphragm helps lower distortion. Always look for any damage on the speaker. Test how the speaker plays different sounds. Listen for any strange noises when you turn up the volume.
The shape of the loudspeaker, how stiff the cone is, and the cabinet design all change how the speaker sounds. These things also help lower distortion. Using good materials and building the speaker well makes the sound clearer. A smart design helps you avoid problems that can hurt sound quality.
Checklist for Evaluating Speaker Components:
Look for broken or loose parts
Try tone sweeps to test sound
Listen for crackling or buzzing when it’s loud
Check the wiring to make sure it is safe
FAQ
What causes distortion in high-frequency speakers?
Distortion happens when speaker parts move in ways they should not. Poor material choices or weak design and construction can make the speaker shake or bend. You hear extra sounds that do not belong in your music.
How do I pick the right materials for my speaker?
You should look for materials that are stiff, light, and good at stopping shakes. This helps your speaker play clear sounds. Always test different options before you decide.
Why does the shape of the speaker cone matter?
The shape controls how the cone moves. A good shape spreads sound evenly and stops unwanted shaking. You get better sound and less distortion.
What is the best way to reduce resonance?
You can use damping materials inside the speaker box. Add foam or rubber to soak up extra energy. This stops the box from shaking and keeps your music clear.
How does design and construction affect sound quality?
Strong design and construction keep all parts in place. This stops unwanted movement and lowers distortion. You hear cleaner and more accurate sound.
